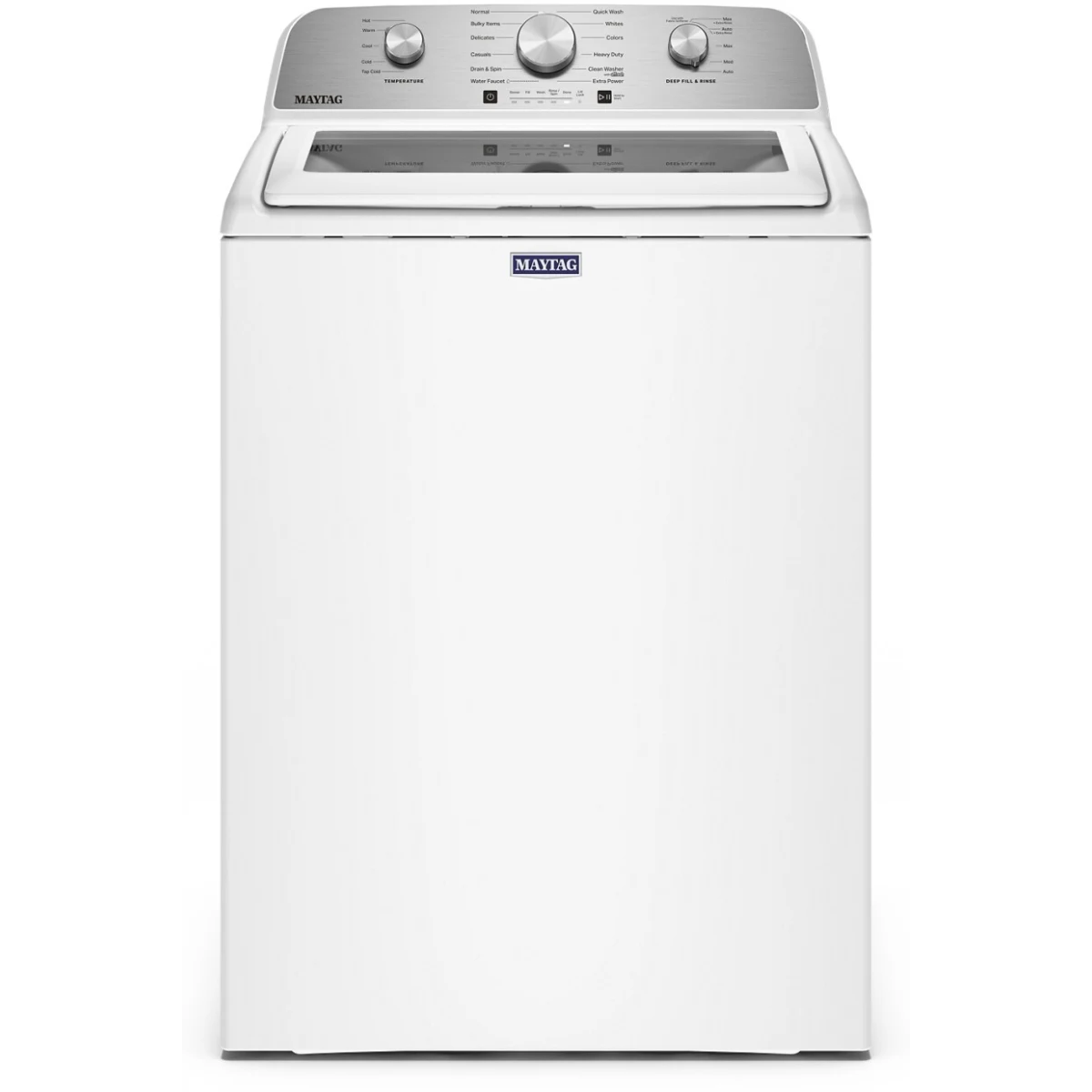

Maytag® 4.7 Cu. Ft. Top Load Agitator Washer with Extra Power Cycle
Call for Availability
Call 301-949-2500 — we'll check stock and delivery options for you
Maytag 4.7 cu. ft. top-load agitator washer. 27 3/4 in wide. 1-year Warranty: Entire Appliance, Parts and Labor.
- Capacity
- 4.7 cu. ft.
- Width
- 27 3/4 in
- Type
- Top load agitator
- Warranty
- 1-year Warranty: Entire Appliance, Parts and Labor
Why you'll like it
- Extra Power option boosts stain removal on heavily soiled loads
- 4.7 cu. ft. capacity
- Power agitator with Extra Power option
About this washer
The Maytag MTW5205TW is a 4.7 cu. ft. top-load agitator washer, a solid everyday choice for most households. You get 11 wash cycles to choose from.
As a top-load washer, it loads from the top, so there is no bending down to load or unload. It measures 27 3/4 in wide, 43 1/4 in high and 27 in deep. It plugs into a standard 120V outlet and needs hot and cold water hookups and a drain. Bettar can deliver and install it. Call 301-949-2500 to check it fits your space.
Will it fit your space?
- Width
- 27 3/4 in
- Height
- 43 1/4 in
- Depth
- 27 in
- Measure your space and the doorways it has to pass through.
- Leave room behind for hookups, and in front for the door (27 in deep when open).
- Check that your power or gas hookup matches the specifications.
Specifications
Model MTW5205TW
Overview
- Brand
- Maytag
- Model
- MTW5205TW
Appearance
- Type
- Top Load
- Color
- White
- Stackable
- No
- Location of Controls
- Rear
Dimensions
- Width
- 27 3/4 in
- Depth
- 27 in
- Height
- 43 1/4 in
- Capacity
- 4.7 Cu. Ft.
Smart
- WiFi
- No
- Remote Diagnostics
- No
- AI Technology
- No
Features & Controls
- Control Type
- Knobs
- Washing Mechanism
- Agitator
- Temperature Settings
- 5
- Bleach Dispenser
- Yes
- Fabric Softener Dispenser
- Yes
- Stainless Steel Drum
- Yes
- Interior Light
- No
- Includes Hoses
- Yes
- Water Heater
- No
- Usage
- Residential
Cycles
- Wash Cycles
- 11
- Wash Options
- 5
- Sanitize Cycle
- No
- Pet Cycle
- No
- Add Wash
- No
- Delicate Cycle
- Yes
- Heavy Duty Cycle
- Yes
- Pre-Wash Cycle
- No
- Quick Wash Cycle
- Yes
- Cold Water Cycle
- Yes
Technical Details
- Energy Star Rated
- No
- ADA Compliant
- No
- Amps
- 15
- Voltage
- 120 Volts
More Specifications
- Advanced Vibration Control
- Yes
- Automated Dispenser
- No
- Automatic Load Size Sensing Technology
- Yes
- Dispense System
- Bleach & Fabric Softener
- Eco Monitor/Efficiency Monitor
- No
- Motor Drive Type
- Belt
- Out of Balance Sensing
- Yes
- Suspension System
- Hung Spring Damper
- Wash Action
- Agitator
- Washer Drum Material
- Stainless Steel
- Washer Drum Rear/Base Material
- Stainless Steel
- Fabric Brush
- No
- Internal Heater
- No
- Lid/Door Finish
- Glass
- Lid/Door Lock
- Yes
- Motor Horsepower
- 1/3 HP
- Recirculation (visible)
- No
- Sound Package
- No
- Water Faucet
- Yes
- Programmable Cycle
- No
- Washer Cycle Selections
- Bulky Items, Casual, Clean Washer with affresh, Colors, Delicates, Drain & Spin, Extra Power, Heavy Duty, Normal, Quick Wash, Whites
- Connectivity
- No
- Smart Appliance
- No
- Works With
- No
- Capacity (DOE) US
- 4.7 cu. ft.
- Capacity IEC Canada
- 5.4 cu. ft.
- Depth With Door Open 90 Degree
- 27 in
- Height with Lid Open
- 55 3/4 in
- Maximum Height
- 44 1/4 in
- Minimum Height
- 43 1/4 in
- Net Weight
- 130 lbs
- Delay Start
- No
- Number of Rinse Options
- 5
- Number of Wash/Rinse Temperatures
- 5
- Number of Washer Options
- 3
- Number of Water Levels
- 3
- Pre Soak
- No
- Rinse Options
- Auto, Auto + Extra Rinse, Max, Max + Extra Rinse, Med
- Rinse Temperature
- Cold
- Temperature Selections
- Cold, Cool, Hot, Tap Cold, Warm
- Water Levels
- Auto, High, Max Fill, Medium
- Automatic Temperature Controls
- Yes
- Control Location
- Backguard
- Electronic Display Type
- LED
- End of Cycle Signal
- No
- Feedback-Status Indicators
- Done, Fill, Rinse, Sensing, Spin, Wash
- LCD Touch Screen
- No
- Hz
- 60
- Power Cord Included
- Yes
- Power Cord Length (ft)
- 5 4/25 ft
- Hoses Included
- Drain Hose
- Adjustable Feet
- Yes
- Slow Close Lid
- Yes
- Window
- Yes
- IWF
- 6 1/2
- UL
- Yes
Warranty
- Warranty
- 1-year Warranty: Entire Appliance, Parts and Labor; 2-10 years Warranty: Limited Parts ONLY
Specifications from the manufacturer and authorized retailers, checked October 2026. Please confirm measurements before installation.
Features
- Power Agitator
- A center agitator that moves clothes all the way around to loosen and break up stains.
- Extra Power Cycle
- Adds extra soaking and scrubbing time for heavily stained loads.
- Deep Fill Option
- Lets you pick higher water levels so big or very dirty loads get fully soaked.
- Built-in Water Faucet
- A faucet inside the washer lets you rinse, spot-treat or soak items right in the tub.
- Quick Wash Cycle
- Gets small, lightly soiled loads done fast, using a high spin to remove water.
- Slow-Close Glass Lid
- A see-through lid that lowers gently instead of slamming.
- Affresh Cleaning Cycle
- A washer-cleaning cycle meant to be run about every 30 washes with a cleaner tablet.
- Auto Sensing Option
- The washer senses the load size and uses just the water it needs.
- Extra Rinse Options
- Adds additional rinses to clear out heavy soil and leftover detergent.
